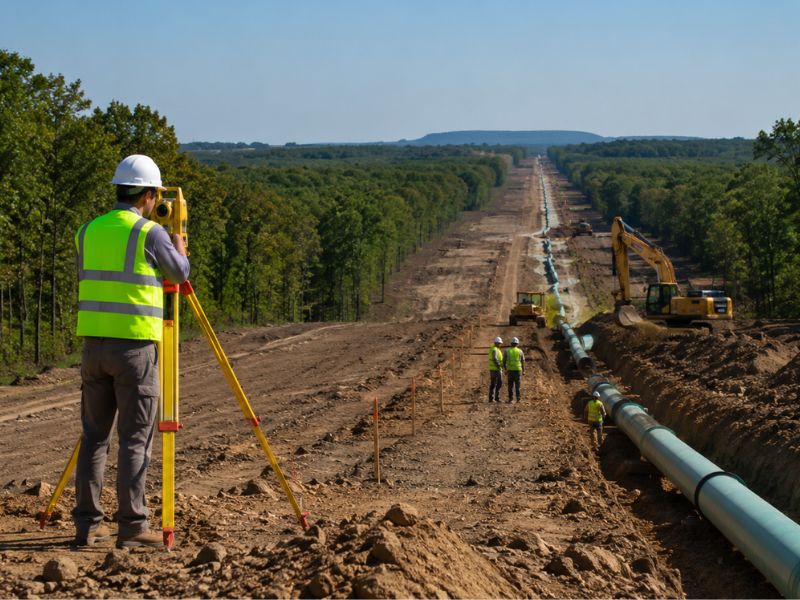

Running a new utility line isn’t as simple as digging a straight trench and dropping in a pipe. Water mains, sewer lines, and underground conduit routes often stretch for miles, cross roads and streams, and involve several crews working from different points at once. A construction survey ties all of that together. It gives crews the exact positions, elevations, and reference points they need so the whole corridor lines up correctly, section by section. Without it, small errors on one end of a project can turn into expensive mismatches on the other end. Here’s what this kind of survey actually involves, and why long utility corridors depend on it so heavily.

Setting Up Control Points That Hold Up Over Miles

A short building site might only need a handful of control points. A utility corridor stretching for miles needs a connected chain of them, both horizontal and vertical, running the full length of the route. Surveyors set these points early, then check them again and again as work moves forward.

This matters most when construction happens in separate sections, or when different crews start work from different access points along the corridor. If one crew’s measurements drift even slightly from another’s, the pipe or conduit won’t line up where it’s supposed to. A solid control network keeps every crew working from the same shared reference, no matter where they start digging.

Turning Design Numbers Into Real Ground Locations

Engineering drawings are full of stationing numbers, centerline references, and offset distances. On paper, this looks clean and precise. Out in the field, someone has to translate all of that into an actual spot where a crew can dig, drill, or lay pipe.

Surveyors take the design data and mark it on the ground, station by station, so crews always know exactly where they stand along the route. This system works the same way whether the project is a pipeline, a water main, a sewer line, or a buried conduit. Skip this translation step, or get it wrong, and crews end up guessing. Guessing is not something you want happening near a live gas line or a busy road.

Handling the Trickiest Spots: Crossings

Every long utility corridor eventually runs into something it has to cross. That might be a road, a railway, a stream, a drainage channel, or another utility already buried underground. These crossings need far more measurement detail than a straight run of open ground.

Surveyors collect elevations, angles, distances, and precise entry and exit points at each crossing. This data feeds directly into decisions about whether the crew uses directional drilling, a trenchless method, or careful open-cut excavation. Get the entry angle wrong on a directional drill, and the bore can miss its target entirely, sometimes by a wide margin. That’s an expensive mistake nobody wants to explain to a client.

Keeping Curves and Bends on Track

Straight sections of a corridor are fairly forgiving. Curves, deflection points, and grade changes are not. Even a small measurement slip at a bend can throw off everything that follows it, because the error compounds as the pipe or conduit continues past that point.

Surveyors tighten up their control at these locations, taking more frequent checks and finer measurements than they would along a long straight stretch. A gentle curve in a water main and a sharp deflection near a road crossing both demand this extra attention, just for different reasons. Skipping it here is how a corridor ends up a few feet off by the time it reaches its final connection point.

Making Sure Both Ends Actually Meet

Big utility projects often get built from both directions at once, or in phases spread out over weeks or months. Two crews might start at opposite ends of a corridor and work toward the middle. That only works if both crews are tied into the exact same survey control from the start.

Before the final connection happens, surveyors run checks to confirm the two segments will meet at the right position and the correct elevation. Catching a gap or a mismatch before the pipe goes in the ground is far cheaper than fixing it after. Nobody wants to dig up a finished trench because two sections missed each other by a few inches.

Frequently Asked Questions

What is survey stationing in a utility corridor?

Stationing is a numbering system that marks distance along the corridor’s centerline, starting from a fixed point. Crews use it to identify exact locations along the route.

How are utility alignments maintained across long distances?

Surveyors set up a connected network of control points along the entire corridor and check it regularly, so every crew works from the same consistent reference no matter where they are.

Why do road and stream crossings require additional survey work?

Crossings need precise elevations, angles, and entry or exit points to support drilling or excavation safely. A small error here can cause the crossing to miss its target underground.

Can separate construction crews use the same survey control network?

Yes. That’s actually the point of setting up shared control points early. Multiple crews can build from different sections or directions and still stay aligned with each other.

How does a surveyor confirm that two utility segments will connect correctly?

Surveyors compare the position and elevation of both segments against the shared control network before the final connection. Any gap or mismatch gets caught and fixed before the pipe or conduit is joined.
